Double Electrode Single Layer Capacitor

FEATURES

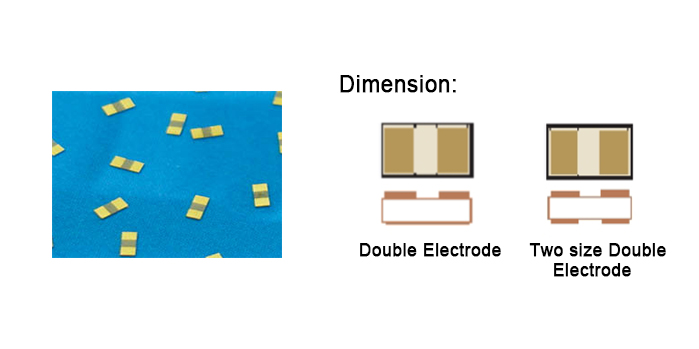

Exsense Electronics latest research and development of double electrode series single layer capacitor is mainly used in RF / microwave and millimeter-wave lines, with a unique structure, good performance and consistency of features. It can according to customer requirements of different sizes and parameters.

1、Peculiar structure.
2、Consistent performance.
3、Customized sizes and parameters available.

APPLICATION

1、This series make it ideal for RF/microwave and millimeter wave application.

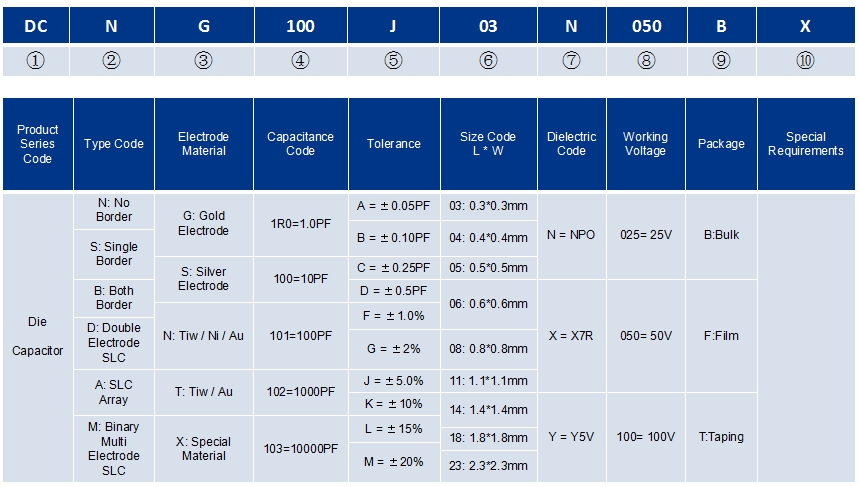

Part Number Identification

Electronic Parameter Specification

Size(mm) CAP.(PF)	G03±0.05	G04±0.05	G05±0.05	G06±0.05	G08±0.15	G11±0.15	G14±0.15	G18±0.25	G23±0.25
Size(mm) CAP.(PF)	0.3*0.3	0.4*0.4	0.5*0.5	0.6*0.6	0.8*0.8	1.1*1.1	1.4*1.4	1.8*1.8	2.3*2.3
0.1(0R1)	√	√
0.2(0R2)	√	√	√	√
0.3(0R3)	√	√	√	√
0.5(0R5)	√	√	√	√	√
1.0(1R0)	√	√	√	√	√	√	√
1.2(1R2)	√	√	√	√	√	√	√
2.7(2R7)	√	√	√	√	√	√	√
3.0(3R0)	√	√	√	√	√	√	√
3.6(3R6)	√	√	√	√	√	√	√
5.1(5R1)	√	√	√	√	√	√	√
10(100)	√	√	√	√	√	√	√
15(150)	√	√	√	√	√	√	√
22(220)	√	√	√	√	√	√	√
27(270)	√	√	√	√	√	√	√
33(330)	√	√	√	√	√	√	√
47(470)	√	√	√	√	√	√	√
56(560)	√	√	√	√	√	√	√
68(680)	√	√	√	√	√	√	√
82(820)	√	√	√	√	√	√	√
100(101)	√	√	√	√	√	√	√
150(151)	√	√
220(221)	√	√	√	√	√	√	√
270(271)	√	√
330(331)	√	√	√	√	√	√	√
390(391)			√	√
470(471)			√	√	√	√	√
560(561)			√	√	√	√	√
680(681)			√	√	√	√	√
750(751)			√	√	√	√	√
820(821)			√	√	√	√	√
1000(102)						√	√
1200(122)					√	√	√
1500(152)					√	√	√
1800(182						√	√
2200(222)						√	√
2700(272)						√	√
3300(332)						√	√	√
3900(392)								√
4700(472)								√
5600(562)								√
6200(622)								√	√
6800(682)								√	√
7500(752)									√
8200(822)									√
10000(103)									√

Noted：0.3*0.3±0.05 (Lenght0.3mm* Width0.3mm±0.05 )

Special specifications can be customized Designed
