General Single Layer Capacitor

FEATURES

The new general single layer capacitor is mainly used in microwave integrated circuit, with small size, large capacitance, excellent microwave performance and good solderability. Customized sizes and parameters available.

1、Small size, large capacitance, excellent microwave performance.
2、Good solderability.

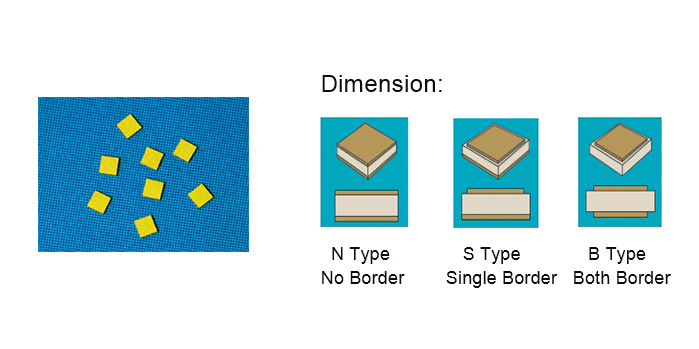

3、The boders help prevent short circuits (arcing at the chip edges) after die attachment, especially with conductive epoxy. The design also reduces handling damage from tweezers, and facilitates automated pick and place assembly processes.
4、Customized sizes and parameters available.

APPLICATION

1、Microwave integrated circuit, DC isolation, bypass, impedance matching etc.

2、The design allows the user to match line with or design a custom capacitor for limited circuit demensions.

Part Number Identification

Electronic Parameter Specification

Size(mm) CAP.(PF)	G03±0.05	G04±0.05	G05±0.05	G06±0.05	G08±0.15	G11±0.15	G14±0.15	G18±0.25	G23±0.25
Size(mm) CAP.(PF)	0.3*0.3	0.4*0.4	0.5*0.5	0.6*0.6	0.8*0.8	1.1*1.1	1.4*1.4	1.8*1.8	2.3*2.3
0.1(0R1)	√	√
0.2(0R2)	√	√	√	√
0.3(0R3)	√	√	√	√
0.5(0R5)	√	√	√	√	√
1.0(1R0)	√	√	√	√	√	√	√
1.2(1R2)	√	√	√	√	√	√	√
2.7(2R7)	√	√	√	√	√	√	√
3.0(3R0)	√	√	√	√	√	√	√
3.6(3R6)	√	√	√	√	√	√	√
5.1(5R1)	√	√	√	√	√	√	√
10(100)	√	√	√	√	√	√	√
15(150)	√	√	√	√	√	√	√
22(220)	√	√	√	√	√	√	√
27(270)	√	√	√	√	√	√	√
33(330)	√	√	√	√	√	√	√
47(470)	√	√	√	√	√	√	√
56(560)	√	√	√	√	√	√	√
68(680)	√	√	√	√	√	√	√
82(820)	√	√	√	√	√	√	√
100(101)	√	√	√	√	√	√	√
150(151)	√	√
220(221)	√	√	√	√	√	√	√
270(271)	√	√
330(331)	√	√	√	√	√	√	√
390(391)			√	√
470(471)			√	√	√	√	√
560(561)			√	√	√	√	√
680(681)			√	√	√	√	√
750(751)			√	√	√	√	√
820(821)			√	√	√	√	√
1000(102)						√	√
1200(122)					√	√	√
1500(152)					√	√	√
1800(182						√	√
2200(222)						√	√
2700(272)						√	√
3300(332)						√	√	√
3900(392)								√
4700(472)								√
5600(562)								√
6200(622)								√	√
6800(682)								√	√
7500(752)									√
8200(822)									√
10000(103)									√

Noted：0.3*0.3±0.05 (Lenght0.3mm* Width0.3mm±0.05 )

Special specifications can be customized Designed
