Single Layer Capacitor Array

FEATURES

Exsense Electronic latest development of single layer capacitor array is mainly used in microwave integrated circuits, decoupling circuit, RF bypass. It has the features of simple installation, not only can reduce the cost of capacitor but also reduce the costs of installation. Customized sizes and parameters available.

1、Simplified assembly.
2、Can be integrated into IC package to reduce bond wire lengths and improve performance.
3、Single insertion reduces complexity and costs.

APPLICATION

1、Microwave integrated circuit, decoupling, RF bypassing.

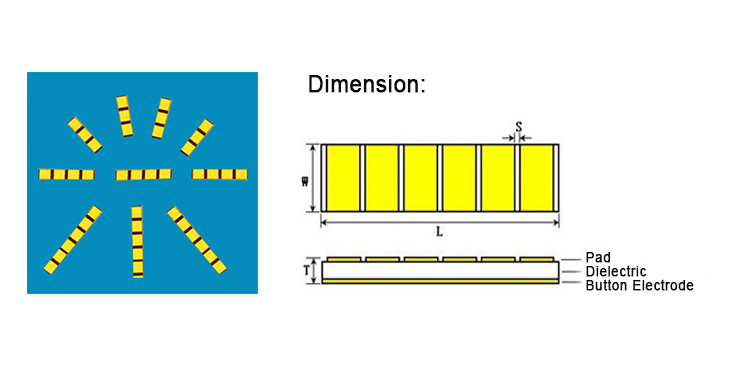

Part Number Identification

Electronic Parameter Specification

Size(mm) CAP.(PF)	G03±0.05	G04±0.05	G05±0.05	G06±0.05	G08±0.15	G11±0.15	G14±0.15	G18±0.25	G23±0.25
Size(mm) CAP.(PF)	0.3*0.3	0.4*0.4	0.5*0.5	0.6*0.6	0.8*0.8	1.1*1.1	1.4*1.4	1.8*1.8	2.3*2.3
0.1(0R1)	√	√
0.2(0R2)	√	√	√	√
0.3(0R3)	√	√	√	√
0.5(0R5)	√	√	√	√	√
1.0(1R0)	√	√	√	√	√	√	√
1.2(1R2)	√	√	√	√	√	√	√
2.7(2R7)	√	√	√	√	√	√	√
3.0(3R0)	√	√	√	√	√	√	√
3.6(3R6)	√	√	√	√	√	√	√
5.1(5R1)	√	√	√	√	√	√	√
10(100)	√	√	√	√	√	√	√
15(150)	√	√	√	√	√	√	√
22(220)	√	√	√	√	√	√	√
27(270)	√	√	√	√	√	√	√
33(330)	√	√	√	√	√	√	√
47(470)	√	√	√	√	√	√	√
56(560)	√	√	√	√	√	√	√
68(680)	√	√	√	√	√	√	√
82(820)	√	√	√	√	√	√	√
100(101)	√	√	√	√	√	√	√
150(151)	√	√
220(221)	√	√	√	√	√	√	√
270(271)	√	√
330(331)	√	√	√	√	√	√	√
390(391)			√	√
470(471)			√	√	√	√	√
560(561)			√	√	√	√	√
680(681)			√	√	√	√	√
750(751)			√	√	√	√	√
820(821)			√	√	√	√	√
1000(102)						√	√
1200(122)					√	√	√
1500(152)					√	√	√
1800(182						√	√
2200(222)						√	√
2700(272)						√	√
3300(332)						√	√	√
3900(392)								√
4700(472)								√
5600(562)								√
6200(622)								√	√
6800(682)								√	√
7500(752)									√
8200(822)									√
10000(103)									√

Noted：0.3*0.3±0.05 (Lenght0.3mm* Width0.3mm±0.05 )

Special specifications can be customized Designed
