DTV Series - Die (Bare Chip) NTC Thermistor for Vehicle Temperature Sensor

FEATURES

DTV series NTC thermal-sensitive chip is a high-precision NTC chip that is coated with silver, which is suitable for the production of automobile water temperature sensor. Exsense Electronics Technology Co., Ltd. provides you with the most professional technical services of NTC thermistor chip and NTC thermistor components. It can be enquired via email, telephone,QQ, etc.

1、High accuracy tolerances to +/-1%.
2、Excellent thermal cycle endurance, High stability.
3、Operating ranges from -50℃ ~ +200℃.

APPLICATION

1、Vehicle water temperature sensor making.

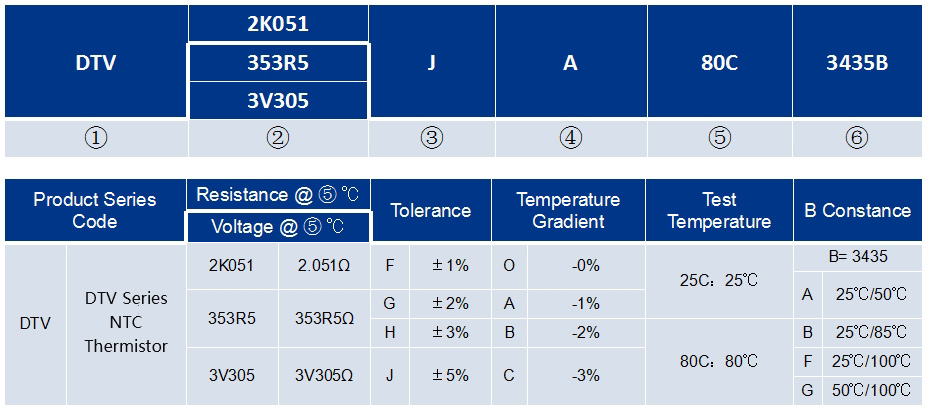

Part Number Identification

Electronic Parameter Specification

Part No.	Nominal Value	B(K)	Rated Power @25℃ (mW)	Dissipation Factor(δ) (mW/℃)	Thermal Time Constant (S)
DTV249R1□□90C3588G	249.1Ω	3588	10-200 (depends on size)	2-50 (depends on size)	≤15 (depends on size)
DTV108R8□□90C3565G	108.8Ω	3565
DTV120R0□□100C4230G	120.0Ω	4230
DTV310R0□□80C4010G	310.0Ω	4010
DTV340R0□□80C4010G	340.0Ω	4010
DTV244R8□□90C4110G	244.8Ω	4110
DTV4K000□□80C4010G	4000Ω	4010
DTV4K200□□80C4262G	4200Ω	4262
DTV374R0□□80C3495G	374.0Ω	3495
DTV930R0□□90C4010G	930.0Ω	4010
DTV334R0□□80C4305G	334.0Ω	4305
DTV778R0□□50C3245G	778.0Ω	3245
DTV362R0□□80C4180G	362.0Ω	4180
DTV320R0□□80C3218G	320.0Ω	3218
DTV316R0□□80C3765G	316.0Ω	3765
DTV1V250□□80C3650A	1.25V	3650
DTV2V300□□80C3740A	2.30V	3740
DTV2V500□□80C4050A	2.50V	4050
DTV3V300□□80C4050A	3.30V	4050

◆Special part number could be custom designed.

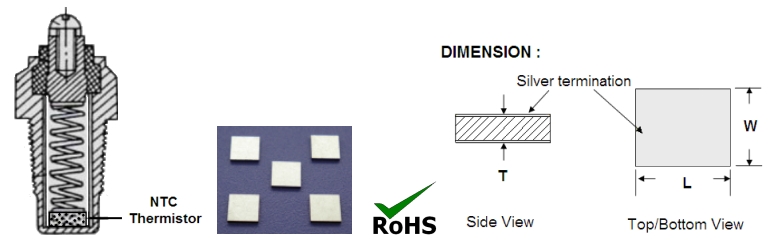

Package
